How to Safely Connect Mark 3 Batteries for Continuous Cooling

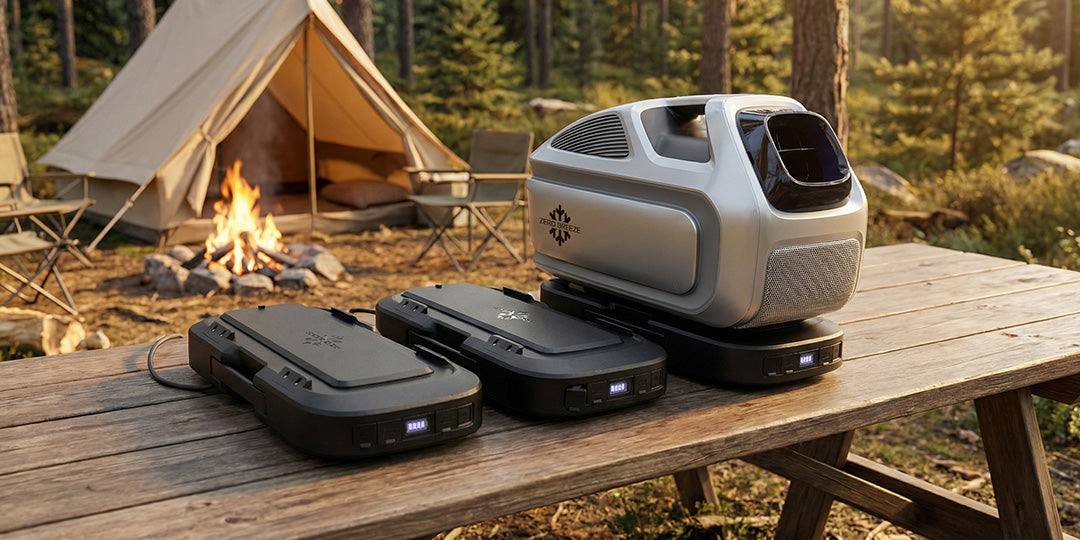

The Mark 3 AC unit and three portable batteries are positioned on a wooden picnic table at a campsite with a lit campfire and tent in the background forest.

Running your ZERO BREEZE Mark 3 with multiple batteries is the most effective way to extend your cooling time, whether you're camping, on the road, or working in extreme heat.

However, incorrect connections can trigger the system's protection mode and stop output. This guide shows you how to safely connect multiple batteries so your setup runs reliably every time.

The Most Important Rule for Connecting Mark 3 Batteries

If you only remember one thing, make it this:

Always keep the battery you are adding OFF before connecting it.

This rule applies in all situations, whether your system is running or powered off.

Connecting an ON battery to an OFF battery creates a voltage mismatch. To protect the cells, the Smart BMS (Battery Management System) will instantly trigger protection mode and cut off output.

Therefore, following this rule ensures a safe and stable connection every time.

A top-down view shows a Mark 3 portable AC unit next to three stacked batteries. A hand is seen connecting a power cable to the top battery.

How to Make Sure a Battery Is OFF

Don't be fooled by a dark screen. When the Mark 3 battery is ON, the screen automatically turns off after 60 seconds of inactivity to save power.

The Double-Press Test

Action: Double-press the power button.

Result A: If the screen does not wake up, the battery is OFF. You are safe to connect.
Result B: If the screen lights up, the battery is ON. You must press and hold the power button to turn it off before connecting.

Safe Methods to Connect Mark 3 Batteries

Follow the method that fits your situation:

Method A: Connect First, Then Power On (Recommended)

Best for first-time setup or starting fresh.

Steps:

Make sure all batteries are OFF.
Connect all batteries using the attached cables.
Connect the system to the Mark 3 AC.
Turn on the battery directly connected to the Mark 3 unit.

Result: Stable and safe startup.

Method B: Add a Battery While Running

Best for extending runtime without stopping the AC.

Steps:

Keep the Mark 3 running on the existing battery chain.
Confirm the battery you are adding is OFF.
Plug it into the system using the attached cable.
Turn on the added battery.

Result: Extended runtime without interruption.

What You May Notice During Use

When using multiple batteries, you may notice the following behaviors, which are normal during operation.

Screens turn off on inactive batteries

When multiple batteries are connected:

The battery powering the system will stay on.
Other batteries will turn off their screens after about 60 seconds.

This helps reduce unnecessary power consumption.

Screens flash during battery switching

When one battery runs out and the system switches to another, the depleted battery's screen may flash.

This is part of the normal switching process and does not indicate any issue.

What to Do If Your Mark 3 Battery Stops Working

If a battery stops output, this is a safety feature, not a defect. It means the BMS successfully protected your battery.

How to reset:

Press and hold the power button on the affected battery for at least 3 seconds.

Battery Placement and Safety Tips

Proper setup is not just about connection. Placement also matters:

Avoid Unsecured Stacking

Since Mark 3 batteries do not lock together when stacked, they may shift or fall during travel. We recommend utilizing the 1m (3.2ft) power cable to place batteries side-by-side for better weight distribution and airflow. If stacking is necessary, please secure them with a strap.

Maintain Clear Airflow

Keep all vents unobstructed. Side vents are for exhaust, and bottom vents are for intake. Blocking airflow may cause overheating, triggering output shutdown.
